MIXING STATION MS-RG

High-performance, fully automated mixing solutions
  • เพิ่มกำลังการผลิต  ด้วยประสิทธิภาพสูงสุด ลดเวลารอคอย
    สามารถส่งคำสั่งซื้อได้เร็วขึ้นด้วยระบบที่ดีเยี่ยม
  • ประหยัดเวลาและกำลังคน เพิ่มผลกำไร  รับประกันการประหยัดต้นทุน
    การผลิตที่สูงสุด และความสามารถในการทำกำไรที่เพิ่มขึ้น
  • การยศาสตร์และประสิทธิภาพ ปรับเปลี่ยนการทำงานให้ปลอดภัย
    และคล่องตัว โดยไม่ต้องใช้คน

Description

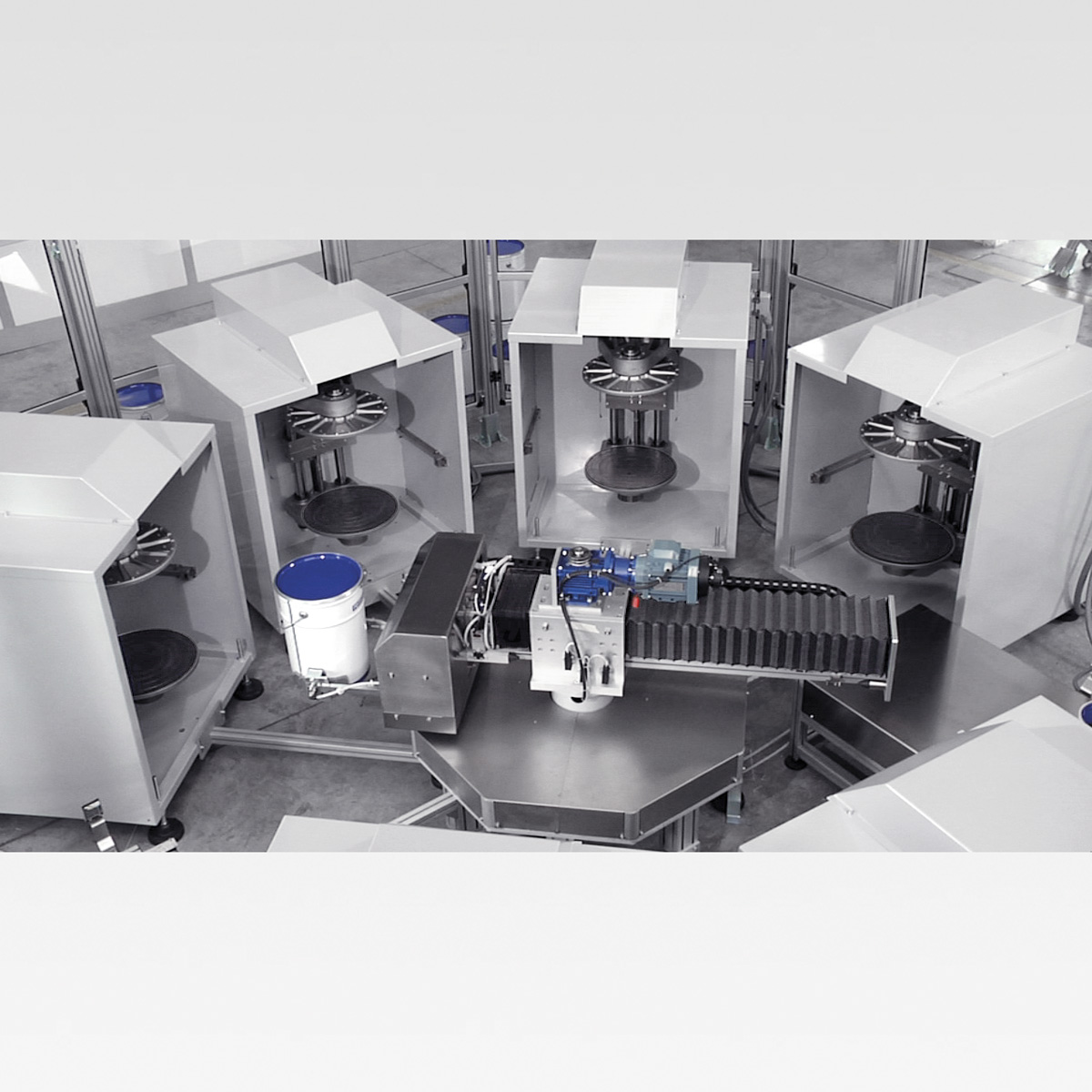

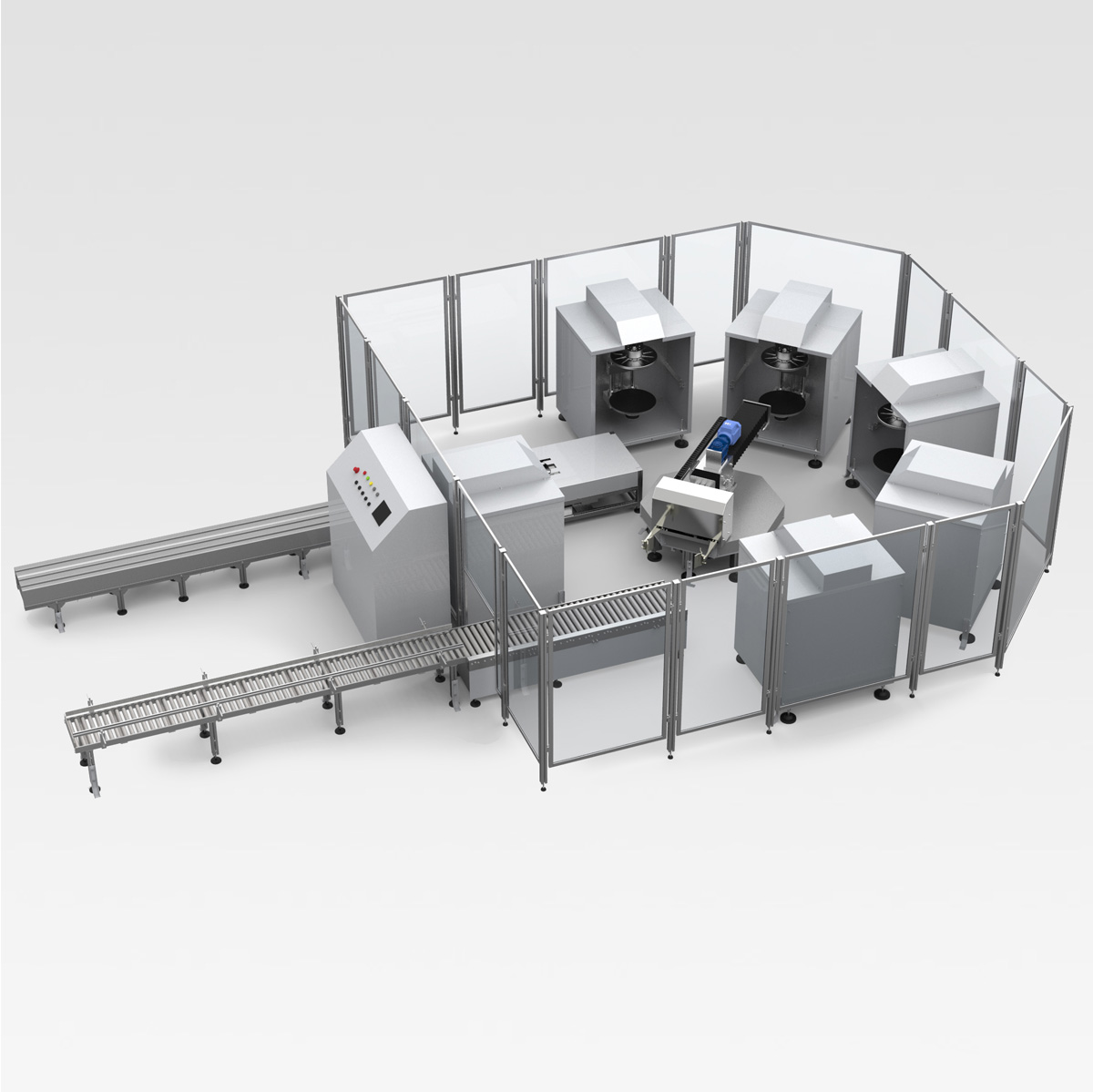

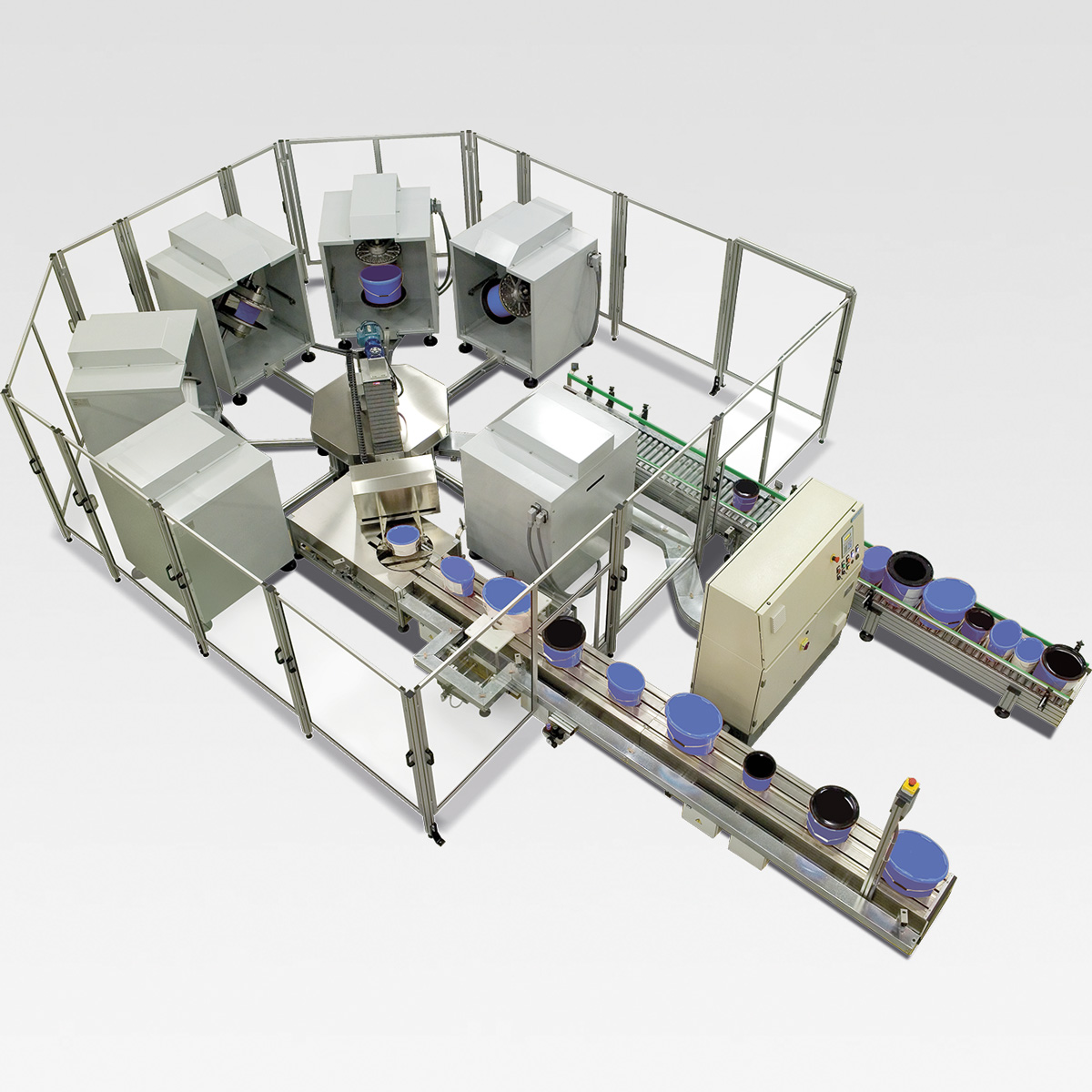

The COROB MS-RG Mixing Station is the ultimate productivity solution for high-volume can handling needs, offering unmatched mixing performance in a wide range of applications.

With up to ten heavy-duty gyroscopic mixers powered by 3HP direct drive mixing motors, the MS-RG delivers unparalleled efficiency and speed.

Fully automated conveyors easily handle pails weighing up to 40 kg/88 lbs, accommodating different can sizes and shapes simultaneously and automatically.

Operators can also customize mixing time and speed for each can individually, if desired, thanks to the MS-RG‘s intuitive controls.

During the mixing process, the can handles/bails are secured by a magnetic system, eliminating the need for tape or bungee cords and ensuring maximum safety and convenience.

The MS-RG solution delivers excellent results, increasing mixing performance while dramatically decreasing maintenance needs and reducing environmental noise. Choose the MS-RG for unmatched efficiency, productivity, and convenience in your mixing operations.

Technical Data

Mixer model

COROB IGCM 500 Heavy Duty Industrial Gyroscopic Mixer

Number of mixers

From 3 to 6 (single)
From 8 to 10 (double)

Productivity/mixing time [pail per hour]

2 min 116
3 min 100
4 min 74

Can size [mm] (in)

Height: min 100 (3.9), max 420 (16.5)
Diameter: min 120 (4.7) max 400 (15.7)
Round, oval (conical or parallel), square and rectangular

Length [mm] (in)

5600 (220.5) up to 6 mixers
5200 (204.7) from 7 to 10 mixers

Depth [mm] (in)

5600 (220.5) up to 6 mixers
7800 (307.1) from 7 to 10 mixers

Height [mm] (in)

1600 (63)
